S. S. HOSES

.

 . Hydraulic Hoses

.

 . Hydraulic Hose Fittings

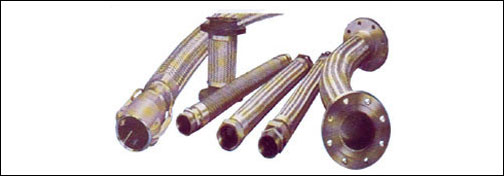

Visionflex SS Corrugated Hoses Assemblies are manufactured from size 6mm - 200 mm with a variety of end connections. End connections are welded by experienced technicians and are proof pressure tested before despatch. For special application, we can provide you with close pitch Hoses for greater flexibility. We give below technical data of both single and double braided Hoses for easy selection.

.

 \/ S S Hoses
. . Hydraulic Compression Fittings
. . Quick Release Couplings
. . Valves
. . Pipe Clamps

[ VH - S.S HOSES]
SIZE SINGLE BRAID DOUBLE BRAID
Nominal Size DN Max Working Pressure Test pressure Burst Pressure Static Bend Radius Dynamic Bend Radius Max. Working Pressure Test Pressure Burst Pressure Static Bend Radius Dynamic Bend Radius
Inch mm bar bar bar mm mm bar bar bar mm mm
. 1/4 6 100 150 400 25 100 160 240 640 25 100
. 3/8 10 90 135 360 40 150 144 216 576 40 150
. 1/2 12 80 120 320 50 200 128 192 512 50 200
. 5/8 16 70 105 280 50 200 112 168 448 50 200
. 3/4 20 64 96 256 70 200 102 153 408 70 200
. 1 25 50 75 200 90 200 80 120 320 90 200
. 1 1/2 32 40 60 160 110 250 64 96 256 110 250
. 1 1/2 40 32 48 128 130 250 48 72 192 130 250
. 2 50 28 42 112 175 350 44 66 176 175 350
. 2 1/2 65 24 36 96 200 410 38 57 152 200 410
. 3 80 18 27 72 205 450 28 42 112 205 450
. 4 100 16 24 64 230 560 26 39 104 230 560
. 5 125 12 18

48

 280 660 20 30 80 280 660
.) 6 150 10 15 40 320 815 16 24 64 320 815
. 8 200 8 12 32 435 1015 12 18 48 435 1015
